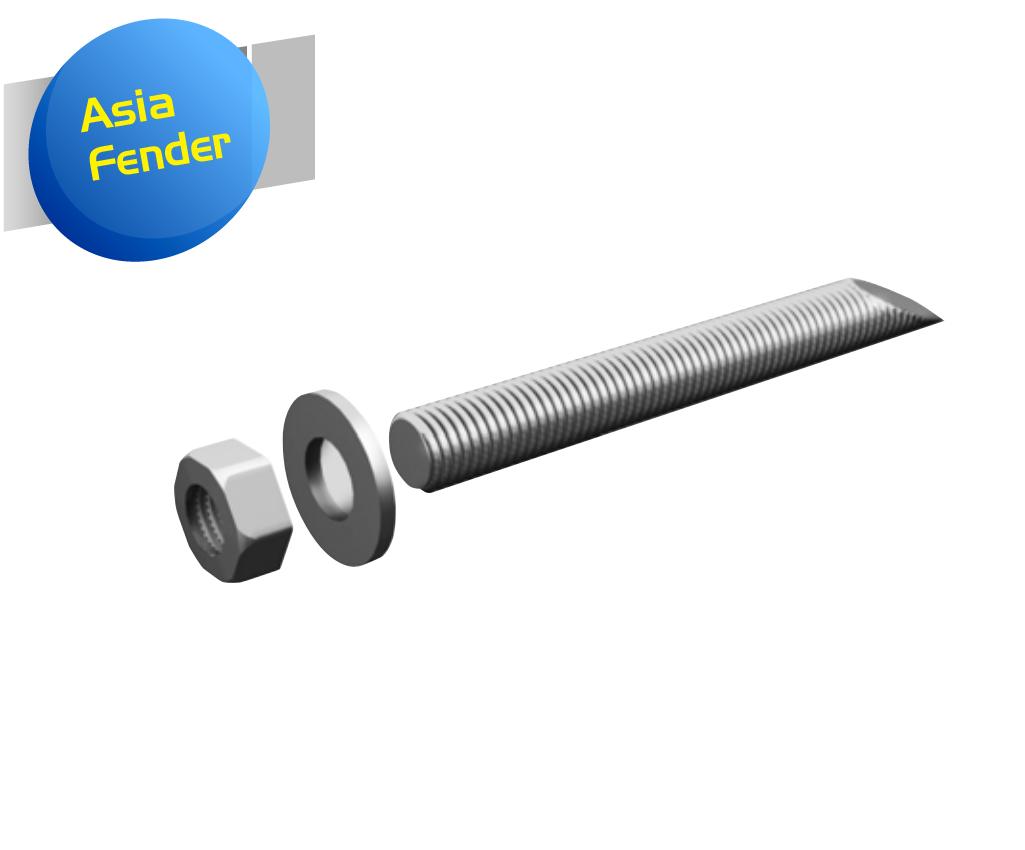

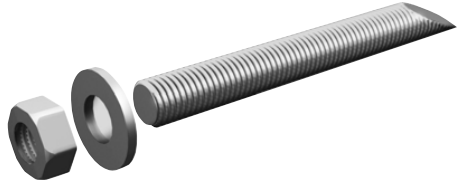

• Stud-Type Anchor Bolt General, Especially AOV, NV & SBP Fender
|
|
|

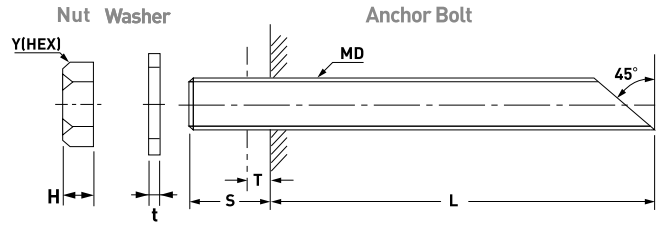

• Dimension (Unit:mm) |
| MD | Nut | Anchor Bolt | |||
| H | Y | Z | L | S | |
| M22 (7/8) | 18 (18) | 32 (35) | 8 | 145 |
H+t+T+Z (Rounded up to nearest 5mm) |
| M24 (1) | 19 (20) | 36 (41) | 10 | 175 | |
| M27 (1 1/8) | 22 (22) | 41 (46) | 10 | 210 | |
| M30 (1 1/4) | 24 (25) | 46 (50) | 11 | 210 | |
| M36 (1 1/2) | 29 (30) | 55 (58) | 12 | 250 | |
| M42 (1 3/4) | 32 (35) | 65 (67) | 13 | 320 | |
| M48 (2) | 38 (40) | 75 (77) | 15 | 320 | |
| M56 (2 1/2) | 45 (45) | 85 (85) | 18 | 400 | |
| M64 (2 1/2) | 51 (50) | 95 (95) | 20 | 450 | |
| M76 (3) | 61 (62) | 110 (110) | 20 | 550 | |
2
