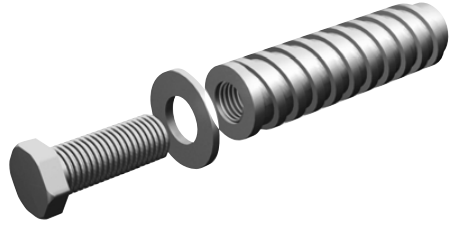

• HS Chemical-Type Anchor Bolt |
|
General, Especially AOV, NV, SBP Fender
|
|

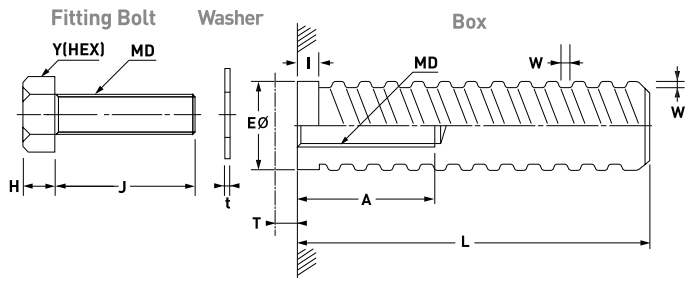

| • Dimension (Unit:mm) |
| MD | Fitting Bolt | Box | |||||||
|
H |
Y | Z | J | A | I | E | L | W | |
| M22 (7/8) | 14 (15) | 32 (35) | 30 |
t+T+Z (round up to nearest 5 mm) |
100 | 15 | 32 | 200 | 2 |
| M24 (1) | 15 (18) | 36 (41) | 35 | 100 | 15 | 35 | 250 | 2 | |
| M27 (1 1/8) | 17 (20) | 41 (46) | 37 | 100 | 15 | 40 | 250 | 2 | |
| M30 (1 1/4) | 19 (22) | 46 (50) | 40 | 100 | 15 | 45 | 250 | 2 | |
| M36 (1 1/2) | 23 (27) | 55 (58) | 45 | 120 | 15 | 55 | 300 | 2.5 | |
| M42 (1 3/4) | 26 (32) | 65 (67) | 50 | 120 | 15 | 60 | 350 | 2.5 | |
| M48 (2) | 30 (36) | 75 (77) | 60 | 120 | 15 | 65 | 350 | 2.5 | |
| M56 (2 1/4) | 35 (45) | 85 (85) | 70 | 120 | 15 | 70 | 400 | 2.5 | |
| M64 (2 1/2) | 40 (45) | 95 (95) | 75 | 120 | 15 | 80 | 450 | 2.5 | |
| M76 (3) | 45 (55) | 110 (110) | 80 | 150 | 15 | 95 | 450 | 2.5 | |
