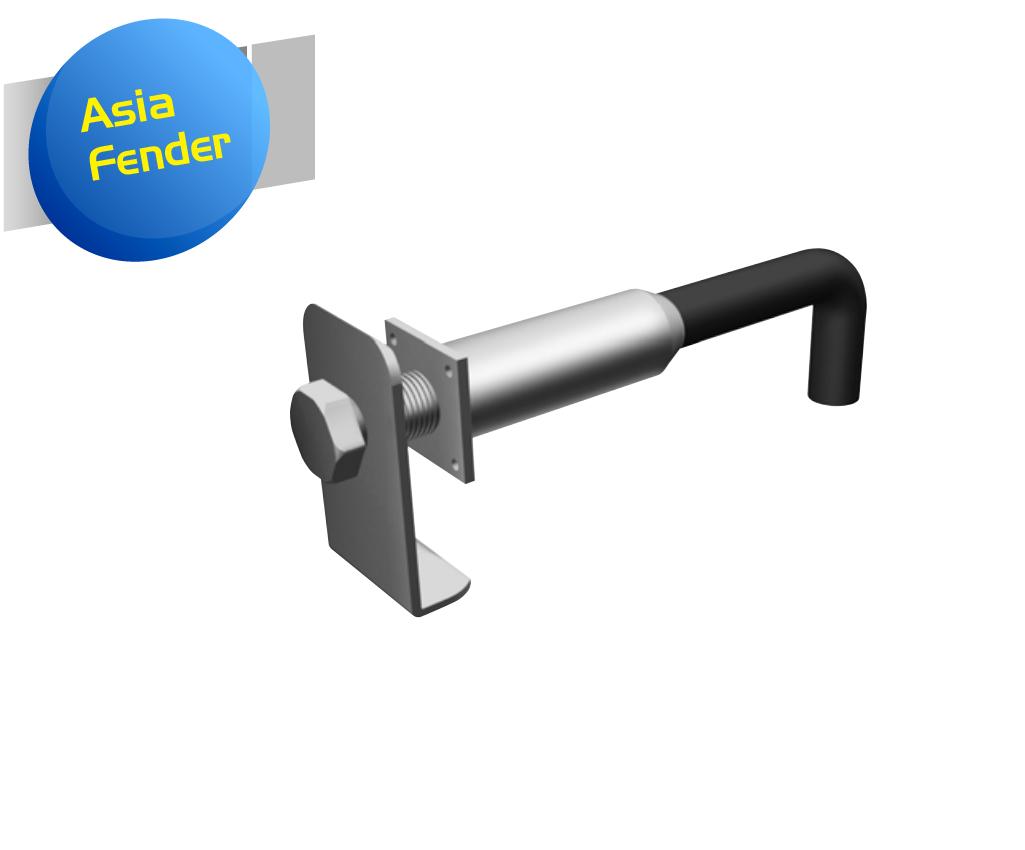

• J-Type Anchor Bolt SSP / General, Especially AOV, NV & SBP Fender
|
|
| • Dimension (Unit:mm) |
| MD | Fitting Bolt | Flange, Box, Flush Bolt | ||||||||||
| H | Y | Z | J | A | B | C | D | EØ | G | I | L | |
| M22 (7/8) | 14 (15) | 32 (35) | 30 |
t+T+Z (round up to nearest 5 mm) |
50 | 6 | 25 | 50 | 28 | 65 | 50 | 175 |
| M24 (1) | 15 (18) | 36 (41) | 35 | 55 | 6 | 25 | 50 | 32 | 70 | 55 | 185 | |
| M27 (1 1/8) | 17 (20) | 41 (46) | 37 | 60 | 6 | 30 | 75 | 35 | 75 | 60 | 210 | |
| M30 (1 1/4) | 19 (22) | 46 (50) | 40 | 65 | 6 | 30 | 85 | 38 | 75 | 60 | 230 | |
| M36 (1 1/2) | 23 (27) | 55 (58) | 45 | 70 | 6 | 35 | 100 | 45 | 85 | 70 | 255 | |
| M42 (1 3/4) | 26 (32) | 65 (67) | 50 | 75 | 6 | 40 | 100 | 55 | 90 | 75 | 290 | |
| M48 (2) | 30 (36) | 75 (77) | 60 | 85 | 6 | 45 | 120 | 65 | 120 | 95 | 325 | |
| M56 (2 1/2) | 35 (40) | 85 (85) | 70 | 90 | 6 | 55 | 140 | 75 | 125 | 100 | 350 | |
| M64 (2 1/2) | 40 (45) | 95 (95) | 75 | 100 | 6 | 60 | 160 | 80 | 130 | 105 | 375 | |
| M76 (3) | 45 (55) | 110 (110) | 80 | 120 | 6 | 75 | 160 | 95 | 155 | 120 | 450 | |
